0~30A Environmental Test Chamber , 0～20N Car Universal Windshield Windscreen Wiping Test Equipment Wiper 0～400KPa

Name: 030A Environmental Test Chamber 020N Car Universal Windshield Windscreen Wiping Test Equipment Wiper 0400KPa
Brand: YUYANG
Price: 1 USD

Wholesale 0~30A Environmental Test Chamber , 0～20N Car Universal Windshield Windscreen Wiping Test Equipment Wiper 0～400KPa from china suppliers

Brand Name : YUYANG

Model Number : YYE061

Certification : GB15085-1994,QC/T44-2009,QC/T44-1997,GB 15085-94 ,GB 11556,

Place of Origin : China

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5 sets/month

Delivery Time : 8-10 work days

Packaging Details : Plywood box

Durability test frequency range : 1~9999999 times

Force sensor measurement range : 0 ~ 20N

Pressure sensor measurement range : 0 ~ 400KPa

Measurement range of flow sensor : 0 ~ 3L/min

Angle sensor measuring range : 0-180 °

Voltage adjustment range : 5~30V, computer program control;

Current sensor measurement range : 0~30A

Test frequency : 0 ~ 200 times/min

Contact Now

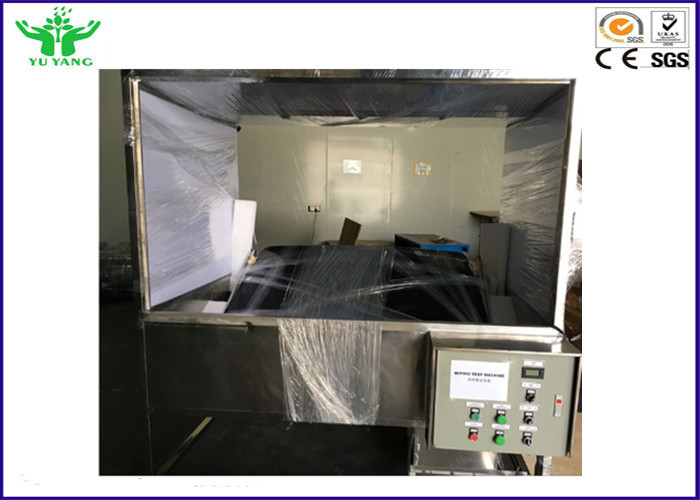

Car Accessories Universal Windshield Windscreen Wiping Test Equipment / Wiper Blade Test Machine

Application:

It is sued for testing the performance and durability of audtormobile wiper and assembly. The test bench can test wiper's wier area, wiper frequency,automatic return, wiper rod's compression force, braking force,wiper effect,system strength and durability. It can simulate ice and snow working condition and durability test.

Standard:

GB15085-1994,QC/T44-2009,QC/T44-1997,GB 15085-94 GB 11556

Parameter:

Durability test frequency rang	1-9999999 times
Force sensor measurement rang	0-20N
Pressure rang of flow sensor	0-3L/min
Angle sensor measuring rang	180°
Voltage adjustment rang	5-30V, computer program control
Current sensor measurrement rang	0-30A
Test frequency	0-200times/min

Testing principles and methods:

Test environment temperature 10 ~ 40 ° c;The windscreen stays wet;Test water should be kept clean and free from any impurities.

Hardness is not higher than 205 g / 1000 kg, the water temperature is not higher than 38 ℃.

When the nominal voltage is 12V, the test electrical pressure is 13.5V±0.3V.When the nominal voltage is 24V, the test voltage is 27V ±0.6v.

The outside surface of the windscreen should be kept clean and free from oil and dirt
